Clark, Ersatzteile, Schaltkontakte,
1
|
|
|
|
| 26-44 | 26-47 |
1
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12644750 | 73 | 13 | 5 | 7,5 | 8,4 | G12647751 | 73 | 13 | 5 | 7,5 | M8 |
| G12644100 | 73 | 13 | 5 | 10 | 8,4 | G12647101 | 73 | 13 | 5 | 10 | M8 |
| G12644130 | 73 | 13 | 5 | 13 | 8,4 | G12647131 | 73 | 13 | 5 | 13 | M8 |
2
|
|
|
|
| 26-45 | 26-46 |
2
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12645750 | 73 | 13 | 5 | 7,5 | 8,4 | G12646751 | 73 | 13 | 5 | 7,5 | M8 |
| G12645100 | 73 | 13 | 5 | 10 | 8,4 | G12667101 | 73 | 13 | 5 | 10 | M8 |
| G12645130 | 73 | 13 | 5 | 13 | 8,4 | G12646131 | 73 | 13 | 5 | 13 | M8 |
3
|
|
|
|

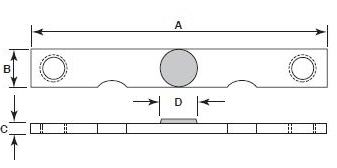

| 26-49 | 26-50 |
3
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12649751 | 135 | 13 | 5 | 7,5 | M8 | G12650751 | 93 | 13 | 5 | 7,5 | M8 |
| G12649101 | 135 | 13 | 5 | 10 | M8 | G12650101 | 93 | 13 | 5 | 10 | M8 |
| G12649131 | 135 | 13 | 5 | 13 | M8 | G12650131 | 93 | 13 | 5 | 13 | M8 |
4
|
|
|
|
| 26-51 | 26-48 |
4
| Best.-Nr.: | A | B | C | D | Best.-Nr.: | A | B | C | D | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12651750 | 54 | 19 | 6,5 | 7,5 | G12648750 | 54 | 19 | 5 | 7,5 | ||
| G12651100 | 54 | 19 | 6,5 | 10 | G12648100 | 54 | 19 | 5 | 10 | ||
| G12651130 | 54 | 19 | 6,5 | 13 | G12648130 | 54 | 19 | 5 | 13 |
5
|
|
|
|
| 26-02 | 26-03 |
5
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12603750 | 80 | 16 | 5 | 7,5 | 8,4 | G12602751 | 80 | 16 | 5 | 7,5 | M8 |
| G12603100 | 80 | 16 | 5 | 10 | 8,4 | G12602101 | 80 | 16 | 5 | 10 | M8 |
| G12603130 | 80 | 16 | 5 | 13 | 8,4 | G12602131 | 80 | 16 | 5 | 13 | M8 |
| G12603160 | 80 | 16 | 5 | 16 | 8,4 | G12602161 | 80 | 16 | 5 | 16 | M8 |
6
|
|
|
|
| 26-01 | 26-04 |
6
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12601750 | 80 | 16 | 5 | 7,5 | 8,4 | G12604751 | 80 | 16 | 5 | 7,5 | M8 |
| G12601100 | 80 | 16 | 5 | 10 | 8,4 | G12604101 | 80 | 16 | 5 | 10 | M8 |
| G12601130 | 80 | 16 | 5 | 13 | 8,4 | G12604131 | 80 | 16 | 5 | 13 | M8 |
| G12601160 | 80 | 16 | 5 | 16 | 8,4 | G12604161 | 80 | 16 | 5 | 16 | M8 |
10
|
|
|
|
| 26-05 | 26-06 |
10
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12605751 | 75 | 16 | 5 | 7,5 | M8 | G12606751 | 75 | 16 | 5 | 7,5 | M8 |
| G12605101 | 75 | 16 | 5 | 10 | M8 | G12606101 | 75 | 16 | 5 | 10 | M8 |
| G12605131 | 75 | 16 | 5 | 13 | M8 | G12606131 | 75 | 16 | 5 | 13 | M8 |
| G12605161 | 75 | 16 | 5 | 16 | M8 | G12606161 | 75 | 16 | 5 | 16 | M8 |
11
|
|
|
|
| 26-07 |
11
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12607751 | 102,5 | 16 | 5 | 7,5 | M8 | ||||||
| G12607101 | 102,5 | 16 | 5 | 10 | M8 | ||||||
| G12607131 | 102,5 | 16 | 5 | 13 | M8 | ||||||
| G12607161 | 102,5 | 16 | 5 | 16 | M8 |
7
|
|
|
|
|
|
| 26-14 | 26-15 |
7
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12614100 | 80 | 19 | 5 | 10 | 8,4 | G12615101 | 80 | 19 | 5 | 10 | M8 |
| G12614160 | 80 | 19 | 5 | 16 | 8,4 | G12615161 | 80 | 19 | 5 | 16 | M8 |
| G12614190 | 80 | 19 | 5 | 19 | 8,4 | G12615191 | 80 | 16 | 5 | 19 | M8 |
8
|
|
|
|
|
|
| 26-13 | 26-16 |
8
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12613100 | 80 | 19 | 5 | 10 | 8,4 | G12616101 | 80 | 19 | 5 | 10 | M8 |
| G12613160 | 80 | 19 | 5 | 16 | 8,4 | G12616161 | 80 | 19 | 5 | 16 | M8 |
| G12613190 | 80 | 19 | 5 | 19 | 8,4 | G12616191 | 80 | 19 | 5 | 19 | M8 |
9
|
|
|
|
|
|
| 26-17 | 26-18 |
9
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12617101 | 75 | 19 | 5 | 10 | M8 | G12618101 | 75 | 19 | 5 | 10 | M8 |
| G12617161 | 75 | 19 | 5 | 16 | M8 | G12618161 | 75 | 19 | 5 | 16 | M8 |
| G12617191 | 75 | 19 | 5 | 19 | M8 | G12618191 | 75 | 19 | 5 | 19 | M8 |
17
|
|
|
|
| 26-19 |
17
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12619101 | 102,5 | 19 | 5 | 10 | M8 | ||||||
| G12619161 | 102,5 | 19 | 5 | 16 | M8 | ||||||
| G12619191 | 102,5 | 19 | 5 | 19 | M8 |
14
|
|
|
|
|
|
| 26-63 | 26-61 |
14
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12663100 | 73 | 19 | 4,75 | 10 | 8,4 | G12661101 | 73 | 19 | 4,75 | 10 | M8 |
| G12663160 | 73 | 19 | 4,75 | 16 | 8,4 | G12663161 | 73 | 19 | 4,75 | 16 | M8 |
15
|
|
|
|
|
|
| 26-64 | 26-62 |
15
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12664100 | 73 | 19 | 4,75 | 10 | 8,4 | G12662101 | 73 | 19 | 4,75 | 10 | M8 |
| G12664160 | 73 | 19 | 4,75 | 16 | 8,4 | G12662161 | 73 | 19 | 4,75 | 16 | M8 |
16
|
|
|
|
|

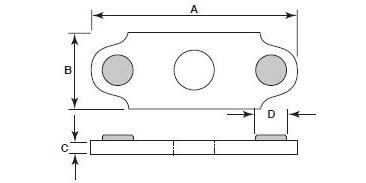

| 26-65 | 26-66 |
16
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12665101 | 92 | 19 | 4,75 | 10 | M8 | G12666100 | 70,5 | 22,5 | 4,75 | 10 | |
| G12665161 | 92 | 19 | 4,75 | 16 | M8 | G12666160 | 70,5 | 22,5 | 4,75 | 16 |
12
|
|
|
|
|
|
| 26-60 |
12
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| G12660101 | 135 | 19 | 4,75 | 10 | M8 | ||||||
| G12660161 | 135 | 19 | 4,75 | 16 | M8 |
1
|
|
|
|
| 07-257 | 25-65 |
1
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | Ø |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HB11301 | 58 | 13 | 3 | 13 | M6 | HB11302 | 74 | 13 | 3 | 13 | M6 |
2
|
|
|
|
| 07-269 | 25-64 |
2
| Best.-Nr.: | A | B | C | D | Ø | Best.-Nr.: | A | B | C | D | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HB11303 | 81 | 13 | 3 | 13 | M6 | HB11304 | 48 | 15 | 3 | 13 |
CONTACT BAR, Clark, , Moveable Contact, Schaltkontakte, Schaltbrücke, EV100, IC4482, Contact Kit GE, Solenoid, Relais, Relays, Contacors, Contaceurs, Schütz,878303, 883707, 883708, 884417, 884488, 897966, 3575158, 851413, 851871, 908242, 998551, 905042, 999361, 905045, 999365, 859399, 862307, 862304, 883787, 859277, 862850, 868173, 859398, 862306, 911111, 445824, 912105, 914640, 7003029, 912370, 7003028, 998546, 991637, 995059, 911252, 4236878, 915388, 998545, 990037, 999037, 998554, 999356, 999554, 998552, 905044, 999363, 998548, 805338, 905338, 905040, 999360, 998562, 999364, 998553, 998547, 1737365, 445802, 905337, 908241, 905043, 999362, 998544, 998561, 911106, 914638, 7003025, 912104, 912369, 7003024, 998555, 999359, 925321, 911110, 911108, 914636, 445815, 915278, 7003023, 911253, 916169, 7003026, 911255, 911107, 914637, 911109, 915386, 445814, 915279, 7003022, 991635, 445830, 3880937, 1152910, 7003133, 52347,
